Mercruiser Alpha One, R and MR Serial Numbers 6225577 THRU 0D469858

    Insist on ONLY Original Factory Parts

Click on the item reference number to add the item to your shopping cart.



Trim Sender Units
The trim senders are no longer sold individually.

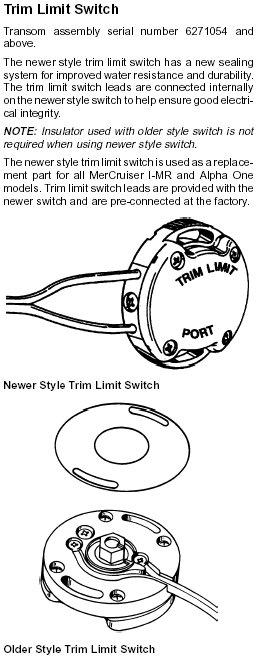

The Port switch is the Trim Limit Switch. This limits how far up the drive will trim.

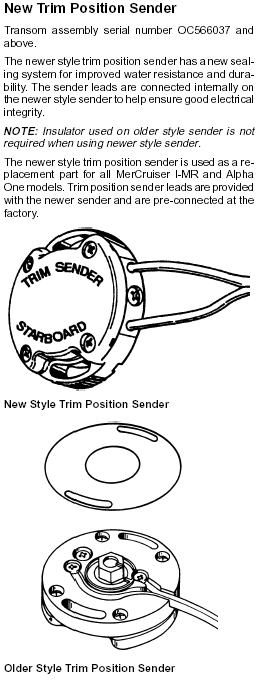

The Starboard switch is the Trim Level Sender switch. This sends a signal to the trim gauge.

If one or the other malfunctions, you will need to get the entire Kit.
The Kits comes with both senders. The senders are pre-wired from the factory
with new wires.
Mercruiser did this because bad wires were the leading cause for switch failure.

805320A1 Single Station Sender Kit
805320A03 Single Station Trim Sender Kit $169.00


If you have Dual Stations (for example, a gauge below and a gauge on the bridge),
You will also need to purchase the Dual Station sender from below.
Dual Station Gauge Sender
805130A6 Dual Station Trim Sender Kit $111.00
    Read Below for more about trim switches


Port Side


 Stb Side


Purchase Manual #6 for switch replacement procedures.

You will also need a Hing Pin Tool to remove the bell housing.
