Quicksilver DDT Scan Tool

.
Models:

Mercury/Mariner EFI, DFI, Optimax, 3.0L Carb and 25-40 hp 4-cycle Outboards.
Mercury Racing EFI Outboards and MerCruisers.
MerCruiser EFI and MPI Models including PCM 555.
MerCruiser 1997 and Newer Carb Models with Thunderbolt V Ignition System.

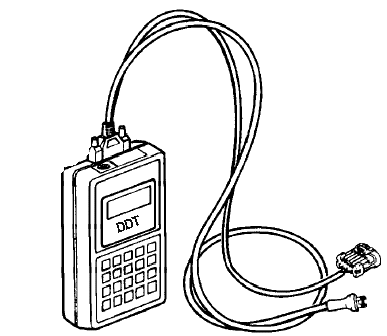

Digital Diagnostic Terminal (DDT) and Cartridge
Mercury Digital Diagnostic Tool

This hand held Scan Tool is easy to use.
The flexible sealed keypad, rubber boot and rugged
design will provide many years of service. It comes with a 10-foot (3 m) cable.
Adapter cables are used to connect the DDT to Data Link Connector (DLC) on the engine.
There are separate Cartridges for Mercury/Mariner Outboards
and MerCruiser products. Instructions with the Cartridges and Service
Manuals will tell how to connect the DDT to the engine.

The DDT, when used with the correct cartridge, and the product’s Service Manual will allow
the technician to properly diagnose and repair engine systems. Engine functions can be
monitored while the engine is running to aid in diagnosis and will display any stored trouble
codes. On MerCruiser engines, the DDT is used to set the base engine timing on
MEFI-1/-2/-3 ECM models.

.


UPDATE... As of 11/2006 the DDT is NO LONGER SOLD.

QUICKSILVER DDT SCAN TOOL

Ordering Prices are subject to change

DDT Scan Tool 91-823686A 2 Digital Diagnostic Terminal (DDT) $1275.65

Mercury/Mariner Outboard Cartridges
91-822608 6 v5.0 – For non-PCM 555 Outboards.
91-880118 1 v1.1 – For PCM 555 Outboards. (Used on MerCruiser also).

Mercury/Mariner Outboard Adapter Harnesses
84-822560A 1 1994 3.0L Carb Engines.
84-822560A 5 1994-1/2 and up 2.5L EFI (with 824003 ECM only).

1994-1/2 Pro Max/Super Max/Super Magnum. 1997 and up DFI/OptiMax Outboards.
84-822560A 6 1995 and up 3.0L EFI and Carb Outboards. (Use with 84-822560A 7).
84-822560A 7 1995 and up 3.0L EFI and Carb Outboards. (Use with 84-822560A 6).
84-822560A 8 All Hi-Performance 2.0L/2.5L EFI Outboards (with 11350A ECM only).
(Use with 84-822560A 7).
84-822560A10 25-40 hp 4-cycle Outboards. (Use with 84-822560A 7).
84-822560T11 Extension Harness, 2-pin 15 ft (4.57 m) long. (Use with 84-822560A 5).
84-875232T 1 2000 Digital OptiMax Outboards only. ‘This T’ Harness allows the DDT
to be connected under the dash at the 5-pin tachometer harness outlet.

Mercury/Mariner Outboard Injector Test Harnesses
84-830043A 1 1986 and up 2.4L/2.5L/3.0L EFI Outboards. (Use with 84-822560A 7).
1982 and up Hi-Performance 2.0L/2.4L/ 2.5L/3.4L EFI Outboards.
(Use with 84-830043A 2).
84-830043A 2 1982 and up Hi-Performance 2.0L/2.4L/2.5L/3.4L EFI Outboards
(including Offshore models). (Use with 84-830043A 1).

MerCruiser Cartridges
91-803999 v2.0 – For MEFI-1/-2/-3 ECM models.
(Can also read RPM history on 1997 and up Thunderbolt V ignition modules).
91-880118 1 v1.1 – For PCM 555 models. (Used on Outboards also).

MerCruiser Adapter Harnesses
84-822560A 2 For MEFI-1/-2/-3 ECM models.
84-822560T12 For PCM 555 models (adapts 4-pin MerCruiser connector to 2-pin
84-822560A 5 Outboard harness).
OR
84-822560A13 For PCM 555 models (4-pin connectors, no additional harness required).
84-861540A 1 1997 and up V6 and V8 Carb Engines with Thunderbolt V Ignition. Allows
rpm history stored in Ignition Module to be read.
(Use with 84-822560A 7).

.
Mercury Fuel Pressure and Air Pressure Gauge Set

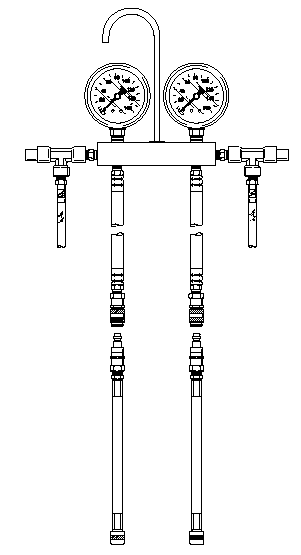

Fuel and Air Pressure Gauge

This gauge kit is a "must" for proper diagnosis and trouble shooting.
Fuel and air pressures are critical for the new EFI, DFI and MPI type Mercury Marine engines.
91-881834A1 Fuel and Air Pressure Gauge Kit $529.10

To order call 954-480-9647 or email us with your request.
